A vertical roof curving machine may form panels for arched or barrel-vault roofs. The curved field is only one part of the assembly. Eaves, crowns, ends, gutters, wall transitions, and penetrations still require carefully coordinated folded components.
Define the Curved Roof Geometry
Record the radius, arc length, panel width, seam direction, support spacing, and start and end points. If the radius changes, divide the roof into controlled zones. These references help the curved panels and perimeter details meet in predictable locations.
Resolve the Crown or Ridge
Some curved roofs continue smoothly over the crown, while others meet a separate ridge or transition. Review panel movement, closures, weather layers, fastening, and visual alignment. A short full-width sample can clarify the sequence.
Design Both Roof Ends
Barrel-vault ends can meet a wall, glazing, parapet, or open canopy edge. End closures may need stepped returns and changing dimensions to follow the curve. Number segmented pieces and check them together on a template.
Coordinate Water at the Low Edge
- Confirm where water leaves the curved panel.
- Keep underlayment and flashing laps facing the drainage path.
- Check the relationship between eave trim, fascia, and gutter.
- Allow for outlets, corners, and overflow conditions.
- Test the assembly with adjacent roof components present.
Protect the Curve during Staging
Curved panels and their edge pieces need supports that preserve geometry. Separate finished faces, protect ends, and avoid stacking that forces one radius against another. Group closures and transition pieces with the roof zone they serve.
Produce the Straight and Stepped Profiles

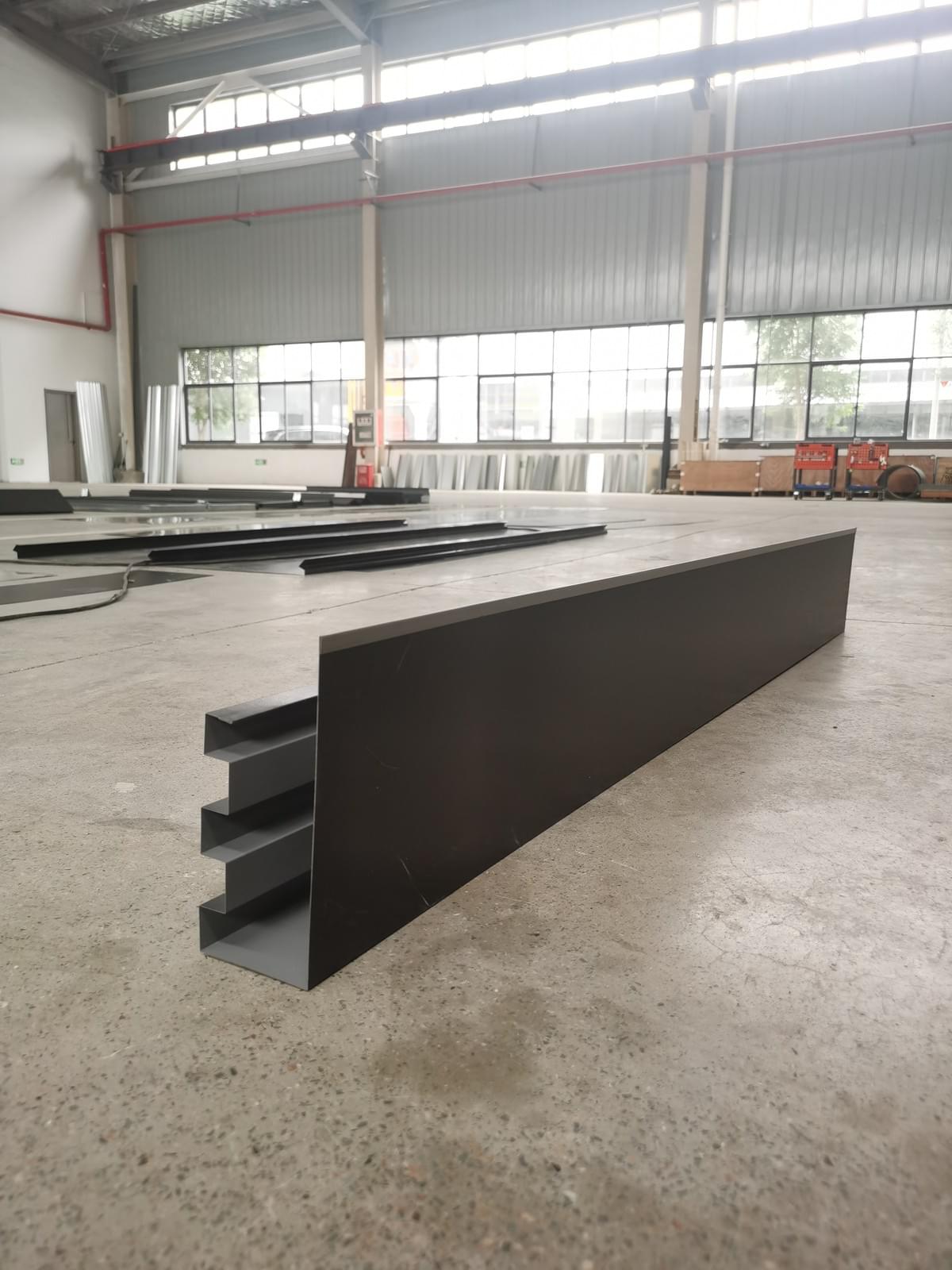

ARTITECT's folding functions for roof-edge components support programmed bends, backgauge positioning, material support, and double-sided handling. These functions can be evaluated for gutters, fascia, end closures, and wall transitions around a curved roof.
Share a Complete Curved-Roof Section
Submit radius data, panel sections, eave and end details, material specifications, and project photographs through the ARTITECT curved-roof profile review. The perimeter conditions provide essential context.
Conclusion
A vertical curved roof is completed at its edges. Clear geometry, tested crown and end conditions, controlled drainage, and protected staging help the curved field connect cleanly to the building.
