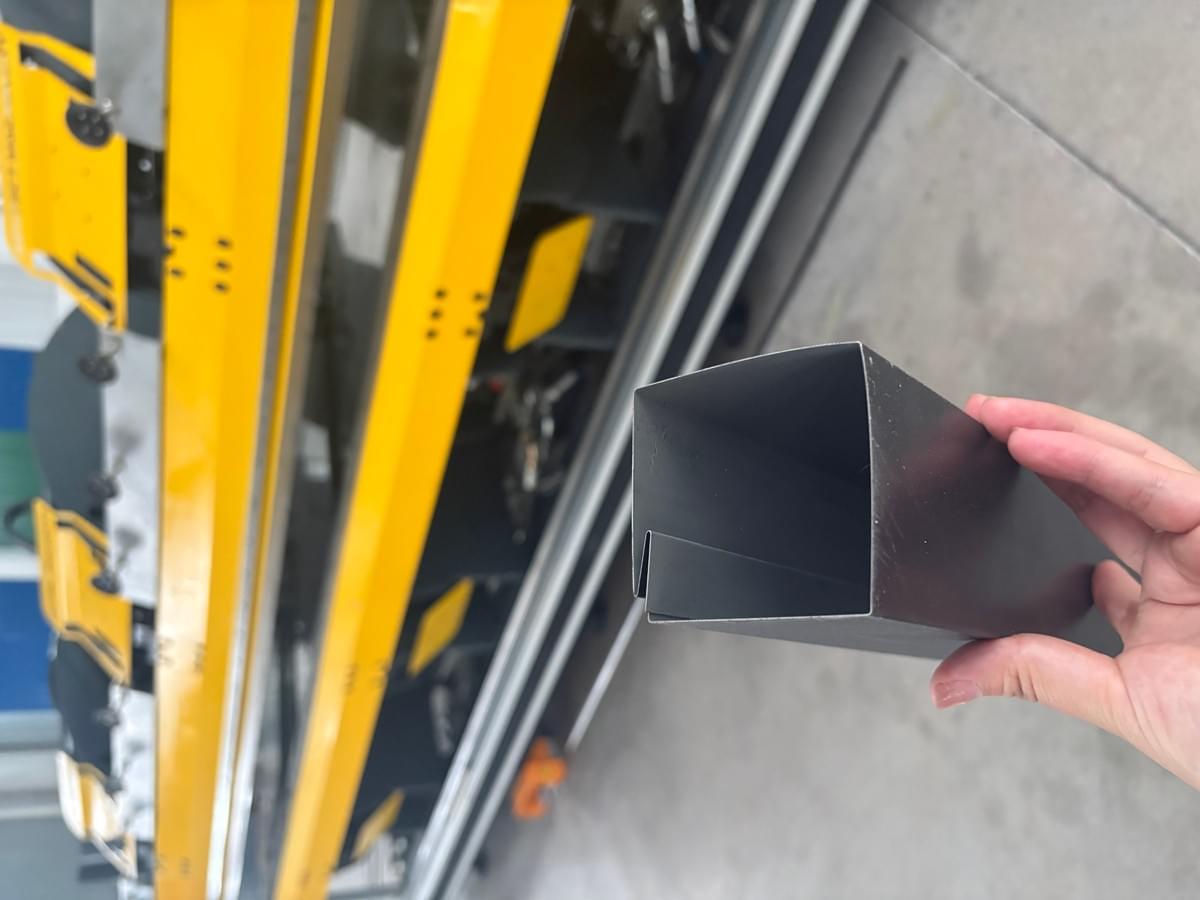

Double folding supports profiles with bends in both directions, but dimensional accuracy is only part of the result. Corners, openings, roof-to-wall transitions, and drainage details must be tested with the materials they actually meet.
Choose Junctions That Concentrate Risk
A straight trim may repeat easily while a corner combines several parts and tolerances. Prioritize locations where visible lines, water management, fastening, and installation order overlap. These junctions provide more useful trials than isolated strips.
Build the Adjacent Layers
A full-scale mock-up should include substrate, insulation, membrane, support rails, panels, fastener clearances, and sealant zones where relevant. The folded profile can then be assessed as part of the assembly rather than as a loose shape.
Test a Varied Junction Set
- An external parapet corner with cap and wall panels.

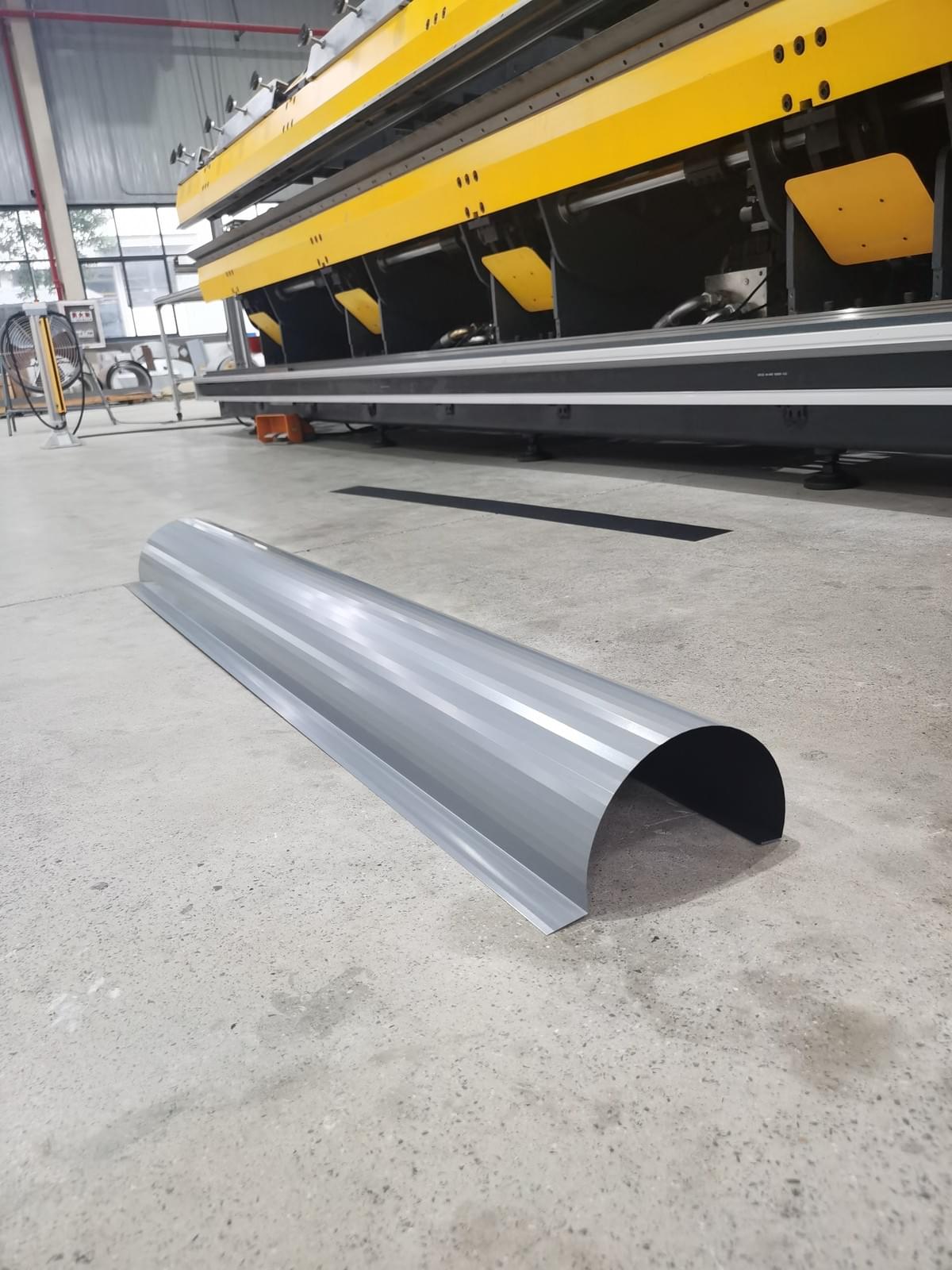

- A window head, jamb, and sill connection.
- A roof eave where fascia and gutter meet.
- A transition between metal cladding and masonry.
- A closure around a curb or penetration.
Check Installation Order
Even accurate parts can become difficult to install if a return blocks access to fasteners or a lap must be completed in the wrong direction. Assemble the mock-up in the intended field sequence and record any temporary removal or forced adjustment.
Use the Mock-Up as a Quality Standard
After approval, photograph the assembly and retain representative samples. Record critical dimensions, visible-face orientation, joint width, and drawing revision. Production and installation teams can use the same reference for later batches.
Connect the Sequence with Folding Functions
The ARTITECT automatic double folding function guide describes graphic programming, backgauge control, material support, and double-sided handling. A complex mock-up turns those capabilities into a measurable application test.
Bring a Difficult Building Corner
Send sections, profile drawings, material data, and photographs of the installed condition through the ARTITECT junction-profile consultation. Include every mating component at the selected location.
Conclusion
Double folding becomes more useful when profiles are tested as parts of complete assemblies. Full-scale junction mock-ups reveal fit, access, drainage, and visual issues before they repeat across a project.
