A metal roof panel bender may be considered for panel edges and repeat sheet shapes, but the roof also depends on the profiles around every field panel. Eaves, rakes, ridges, transitions, gutters, parapets, and closures connect the roof to the rest of the building.
Map the Complete Roof Package
Create a schedule that links each folded detail to its roof zone and drawing section. Note the panel geometry, visible face, material, coating, lap direction, fastener zone, and drainage path. Similar trim shapes should remain distinguishable during production and packing.
Begin with Eaves and Rakes

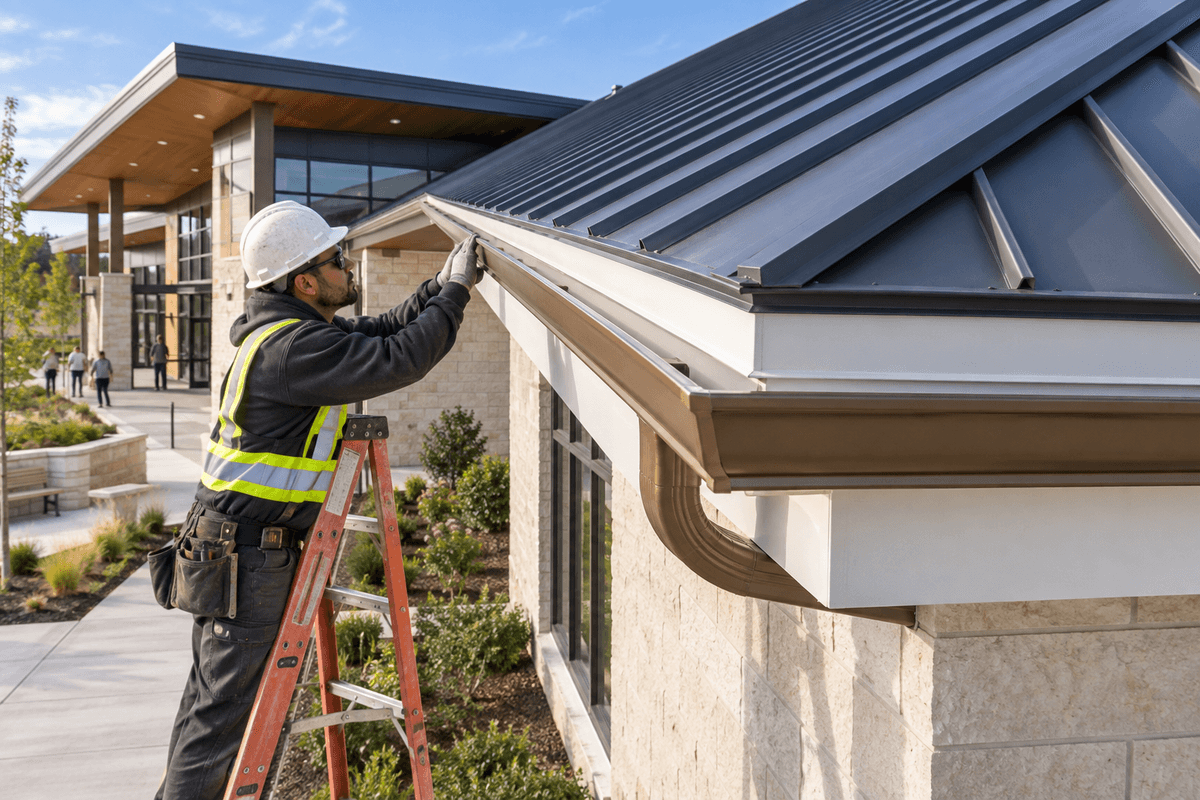

The eave coordinates the panel end, underlayment, fascia, and gutter. The rake defines a highly visible sloped edge. Full-size trial sections can reveal interference, exposed fasteners, weak laps, or an installation sequence that is difficult to complete.
Coordinate High and Low Points
Ridge and hip details join opposing slopes, while valleys and gutters collect water. These profiles should be reviewed with closures, membranes, and adjacent panels. A correct standalone dimension does not guarantee that the assembled detail will drain or align properly.

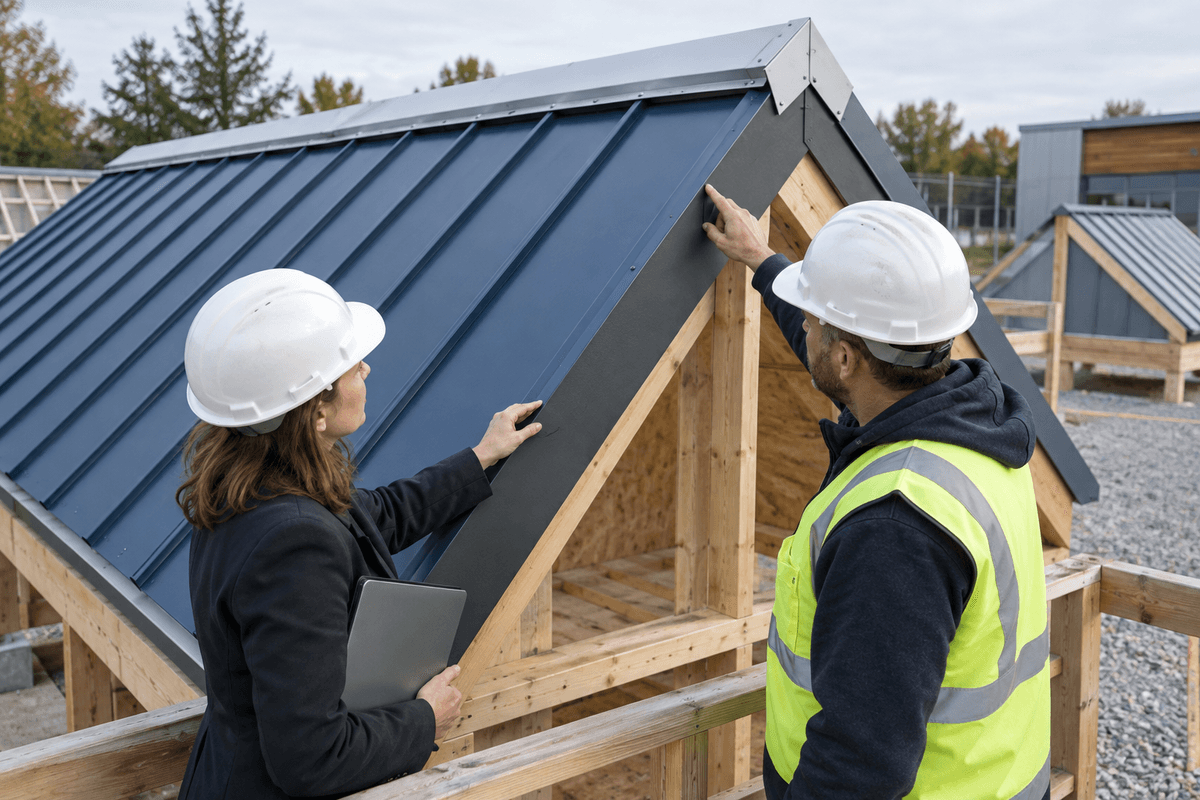

Approve a Roof Detail Set
- One eave assembly with fascia and gutter relationship.
- One rake edge with its visible return.
- A ridge, hip, or slope transition sample.
- A parapet cap with corner and lap pieces.
- A curb or penetration closure from the project.
Protect Profiles through Delivery
Long trim and edge components can be damaged after accurate production. Use continuous supports, clean separators, protected ends, and bundles organized by roof area. Crews should be able to find the right closure without moving unrelated material.
Match the Process to Long Profiles
ARTITECT's roofing profile folding capabilities include graphic programming, material support, thickness adjustment, backgauge positioning, and double-sided handling. These functions can be reviewed with edge components that represent the full roof package.
Share the Difficult Roof Details
Provide roof sections, profile drawings, material data, and photographs of corners or transitions through the ARTITECT roof-detail production review. Include mating parts rather than sending only one isolated profile.
Conclusion
Metal roof performance depends on the coordinated details surrounding the panels. Mock-ups, assembled checks, finish protection, and installation-led packaging help those parts arrive ready for the building.
