SYNCRONIZED CONTROL DRIVE SHAFT TECHNOLOGY
Ensure double folder longevity
Allow folding machine faster speed

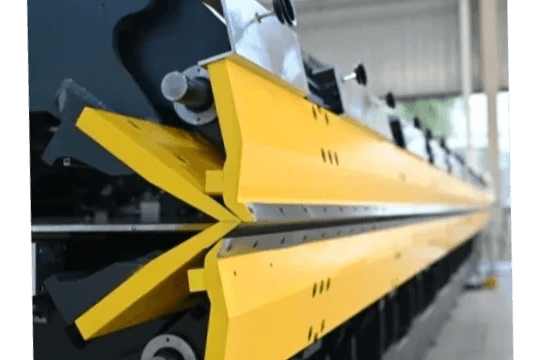

UNIQUE WORKSPACE
35° upper tooling and lower tooling
15° folding beam recess
DYNAMIC FOLDING
Allows the movement of multiple machine axes at the same time.
Repositioning and stop times are reduced to a minimum
CNC MATERIAL THICKNESS ADJUSTMENT
The clamping tooling can be positioned precisely in accordance with the sheet used

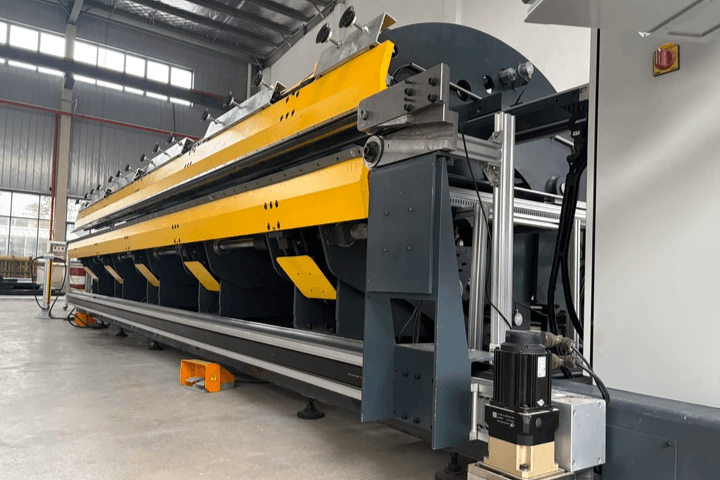

HARDENED LINKAGES
Incorporates hardened linkages and pins on both the upper and lower bending beam.
HYDRAULICS
72DB low noise
Each axis is controlled by its own, safe servo proportional valve

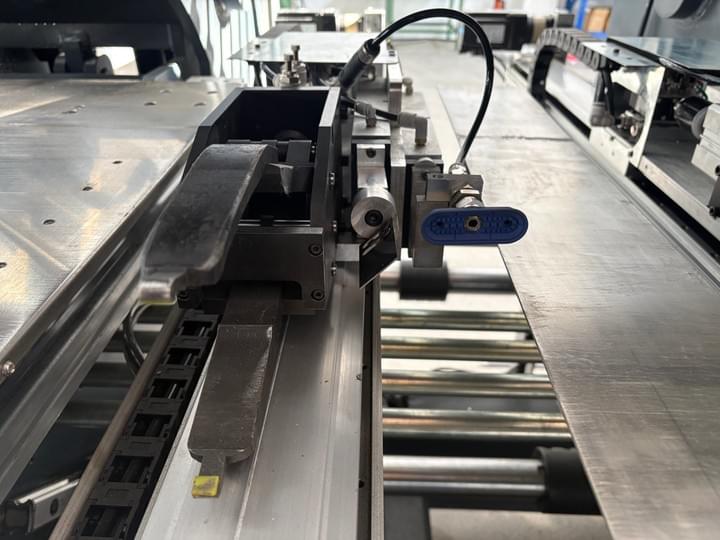

BACKGAUGE AND MATERIAL GRIPPER
Range from 20mm - 1250mm at 250mm/ sec
smallest gauge 5mm with spring fingers
TAPERED BACKGAUGE UNIT
Fully automatic tapered gauge
offsets of left to right of +/-127mm
GRAPIC CONTROL EFsys
Touch-screen profile programming auto folding sequence
Collision simulation program

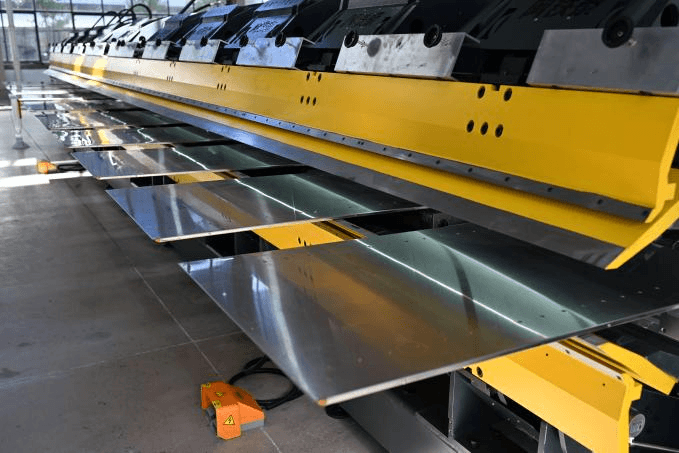

AUTOMATIC EXTENDABLE SHEET LOADING & SHEET SUPPORT
710mm extension
servo driven,fully programmable
AUTOMATIC SIDE SHEET LOADING DEVICE
Loader can feed one single sheet or multiples in a sequence
Capable to load a sheet the capacity of the machine
AUTOMATIC PART FLIPPER
Range of part 125mm - 635mm without operator assist
For double sided hem or grip other side of part
