A 4 panel fold can describe a profile with several related faces, returns, or folded sections. In architectural sheet metal work, the label is less important than the geometry. Each face needs the right length, angle, sequence, and finished orientation.
ARTITECT MACHINERY's double folder factory overview and architectural profile folding guide help shops connect drawing details with repeatable folding, support, and handling.
Four Faces Create More Chances for Drift
A profile with several folded faces can magnify small errors. If the first flange is slightly off, later faces may not land where the installer expects. When several pieces must join across a roof edge or facade line, those small differences become visible.
This is why shops should test the full sequence, not only one bend.
Applications That Use Multi-Face Profiles

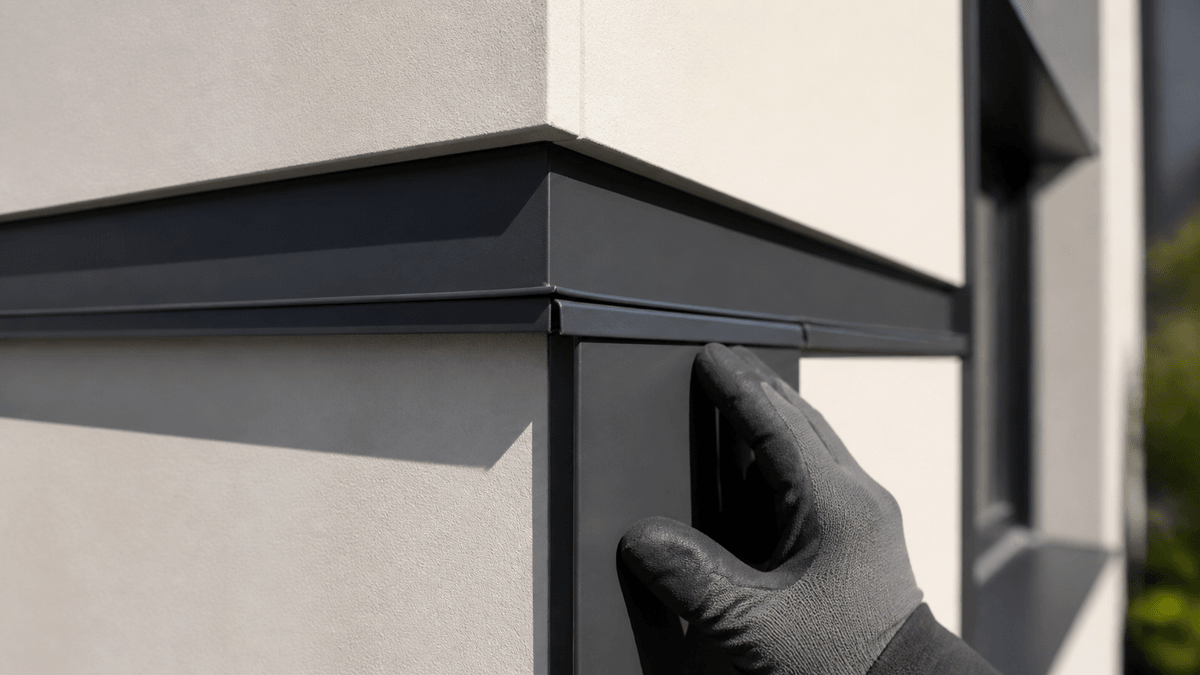

- Facade reveal trim with visible and hidden faces.
- Parapet coping with returns and underside details.

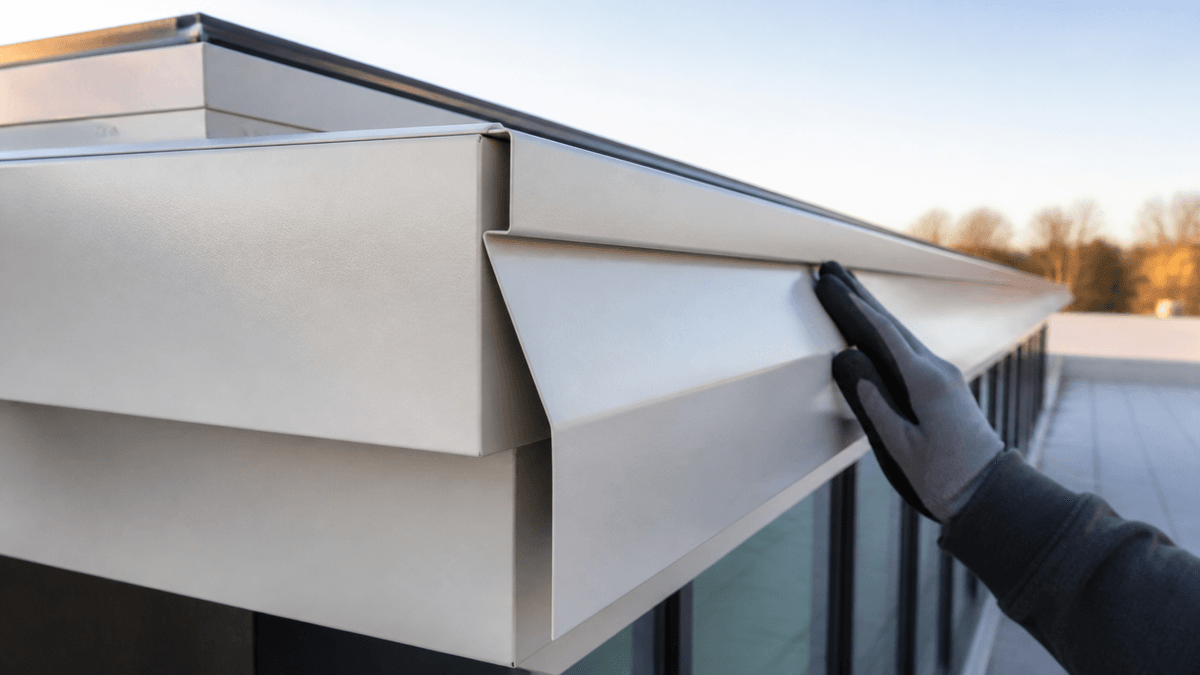

- Roof fascia with a front face, drip edge, and back return.
- Box gutter profiles with side walls and flange details.
- Corner trim that must wrap a building edge cleanly.
Bend Sequence Matters
A four-face profile should be reviewed as a path. Operators need to know which face is visible, which return locks the part in place, and which dimensions must be held most tightly. If the part has bends in opposing directions, handling becomes part of the quality plan.
Inspection Should Match the Installation
Instead of checking only angle, inspect the finished profile the way it will be used. Place parts against a panel edge, parapet mockup, or gutter corner. Confirm that visible lines stay straight and that joints close without forced correction.
Clarify the Detail Before Production
Send profile drawings, finished face notes, bend order, material thickness, and longest part length through the ARTITECT multi-face profile consultation form. A clear drawing helps turn a 4 panel fold idea into a practical production sequence.
Conclusion
Four-panel fold work depends on sequence, support, and inspection. When shops define the finished faces and installation details early, multi-face architectural profiles become easier to repeat and easier to install.
