A roof panel folding machine workflow often supports the details around the main roof panels. Eave trim, rake flashing, ridge components, transitions, parapet caps, and closures connect the roof surface to walls, edges, and drainage paths.
Begin at the Roof Assembly
The profile drawing should show more than bend dimensions. Include the panel geometry, substrate, membrane, insulation, fastener zone, drainage direction, and visible face. These relationships determine whether the finished part fits the assembly.
Coordinate Critical Roof Locations

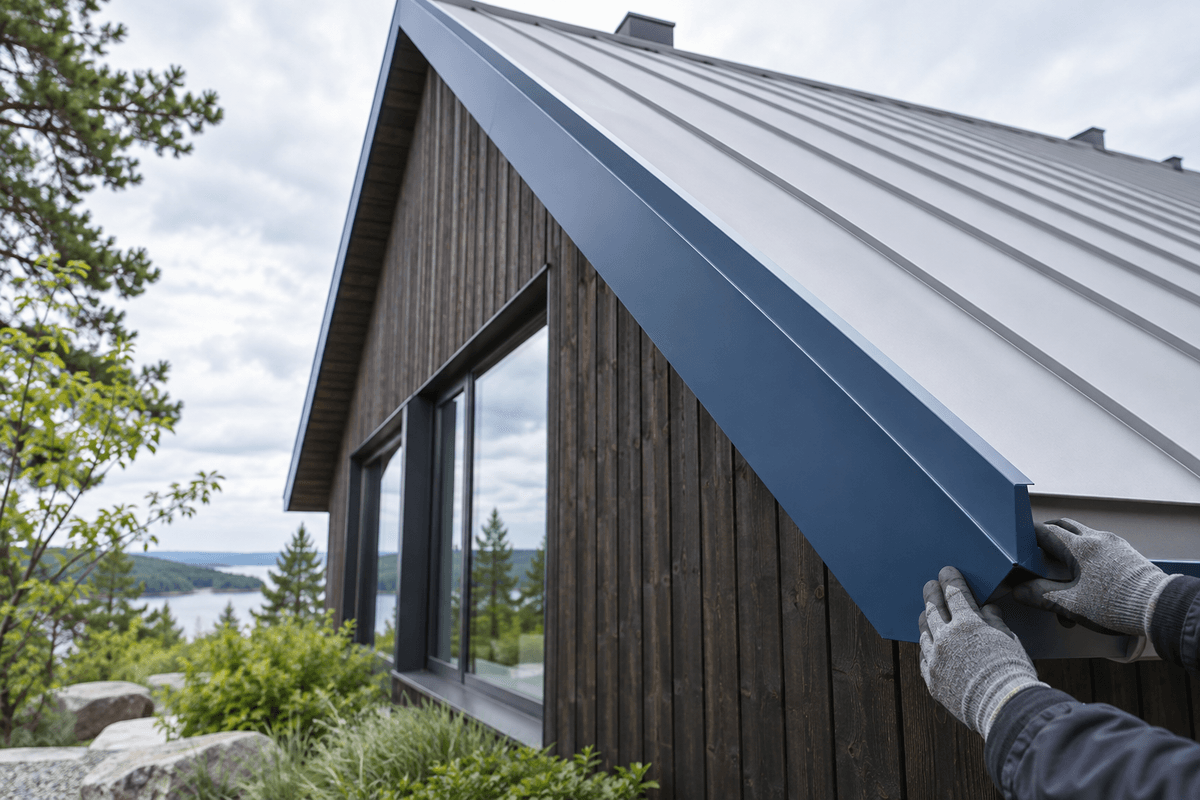

- Eaves where panels, fascia, and gutters meet.

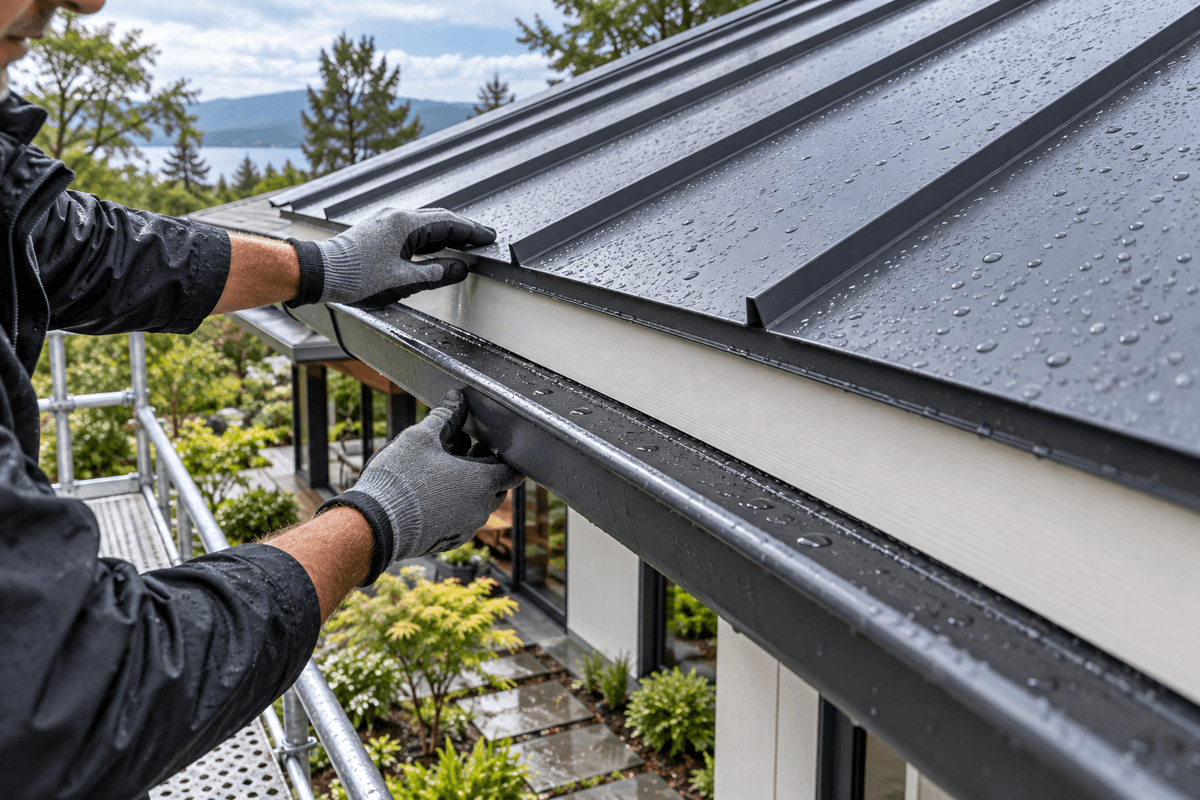

- Rakes that define the roof's visible side edge.
- Ridges and hips where opposing slopes connect.
- Transitions between different slopes or materials.
- Parapets, curbs, and penetrations requiring closures.
Use Mock-Ups for Layered Details
A folded sample may match its drawing but still conflict with adjacent components. Build a short representative roof section and test the installation order, laps, clearances, and water-shedding direction before producing the full set.
Protect the Visible Face
Roof-edge and rake details can be seen from the ground. Mark the visible face on drawings and shop instructions. Use clean supports, separators, and packaging that prevent scratches and distortion during delivery.
Repeat Geometry Across the Project
Automatic double folder functions can support repeat detail sets when drawings and material data are controlled. ARTITECT's roofing profile folding functions cover programming, support, thickness adjustment, and double-sided part handling.
Review the Complete Detail Package
Send roof sections, profile drawings, material information, and installation photos through the ARTITECT roofing detail consultation. Include the mating components, not only the folded part.
Conclusion
Accurate roof details come from coordination between the drawing, folded profile, adjacent layers, and installation sequence. A practical folding workflow helps those details repeat across the entire project.
